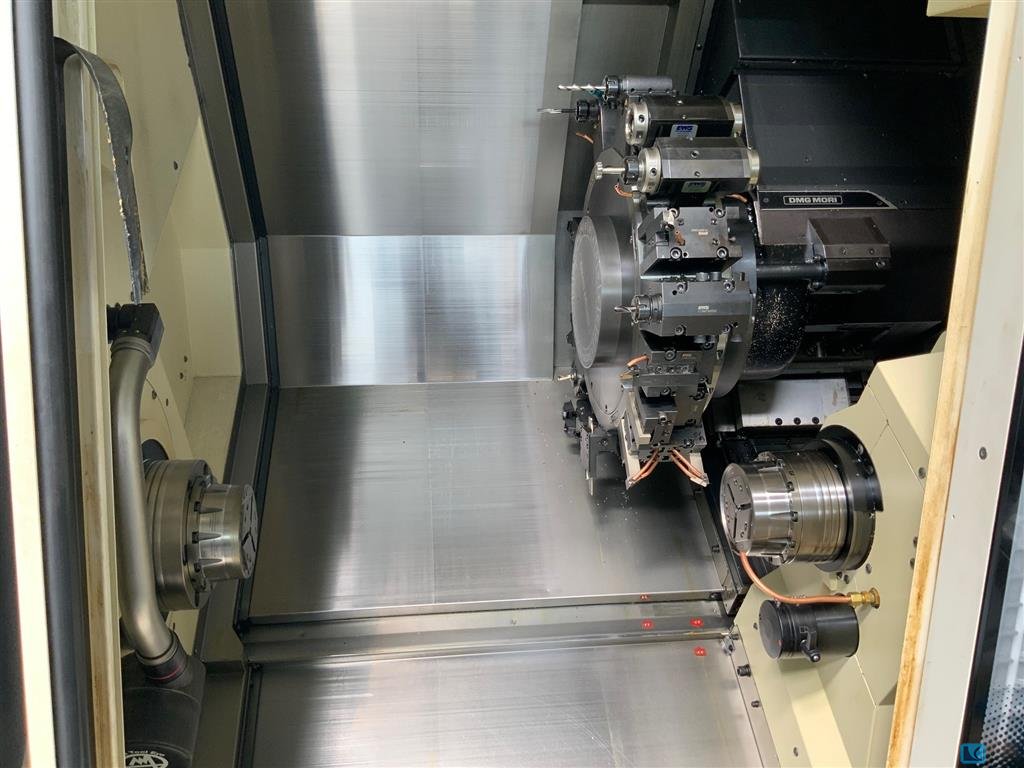

Details

turning diameter

356 mm

turning length

705 mm

control

CELOS M730 UM MAPPS

swing dia.

742 mm

standard turning diameter

275 mm

travel -x axis

260 mm

travel -y axis

100 (+-50) mm

travel -z axis

795 mm

rapid travel - longitudinal/face

30 / 30 m/min

rapid traverse Y-axis

10 m/min

Rapid travel B-axis (parts transfer subspindle)

734 m/min

Spindle 1 RPM

4000 1/min

Spindle 1 Power

18,5/18,5/15 kW

Spindle 1 max. bar diameter

80 mm

Spindle 2 RPM

4500 1/min

Spindle 2 power

11 / 7,5 kW

Second spindle has tailstock function



turret stations / rotary tool stations

20 / 20 BMT40

5.5/5,5/3,7 kW

speed of driven tools

10000 1/min

Coolant through subspindle



Interface for protection fence



collet chuck



total power requirement

38 kVA

weight of the machine ca.

6,3 t

dimensions of the machine ca.

4 (9) x 2,1 x 2,2  m

3m Barfeeder Magazine IRCO SIMAG 80.1.R.II



Control unit

CNC

Maker of control unit

Celos M730 UM MAPPS

9300 / 6300

Accerories

Chip conveyor



Barfeeder Interface



Parts catcher



Parts and total counter



Signal lamp 3 colors



Spindle 1 Chuck

Kitagawa B 210 (250 mm)

Spindle 2 Chuck

Kitagawa B 206 (160 mm)

Conveyor for partsdisposal



Automatic door



Robot interface
