Details

turning diameter

670 mm

turning length

1540 mm

control

F31iB5 Celos Fanuc 35iB5

swing diameter max. over bed cover

700 mm

Travel turret No.1 (milling spindle) x/y/z

495 / ± 150 / 1562(+164) mm

Rotation B-axis

-30° / +210°

Rapid traverse feeds turret 1 (milling head) x/y/z

40/40/40 m/min

RPM milling spindle

12000 1/min

power capacity - milling spindle

20,2/18,8 kW

Torque of milling spindle

120 / 44 Nm

tool taper milling spindle

Coromant Capto C6

Tool magazine for milling spindle (turret 1)

76

Tool change time tool/tool, milling spindle

1,25 s

Spindle 1 RPM

3000 1/min

Spindle 1 Power

36 / 30 / 25 kW

C-axis spindle 1

0,001 °

Bar capacity spindle 1

102 mm

Spindle 2 RPM

4000 1/min

Spindle 2 power

26 / 22 / 15 kW

C-axis spindle 2

0,001 °

Bar capacity spindle 2

80 mm

Mainspindle wit 2 clamping pressures, separate adjustable



Automatic travel control for cylinder of main spindle



Sub spindle 2 level clamping pressure for chuck



Automatic Travel Control for Cylinder Subspindle



Second spindle has tailstock function



Non-center turning and milling



Varying RPM 3D Quickset



Increase of Precision to 0,0001 mm



Parts and total counter



total power requirement

 kVA

weight of the machine ca.

 t

dimensions of the machine ca.

7,8 x 3,6 x 2,9 m

Milling of pockets and islands



Coordinate system rotation



Linear scales on axis

X, Y

programmable steady

KLU-A530 & SLU-X3.2

Control unit

CNC

Maker of control unit

F31iB5 Celos

Accerories

Chip conveyor



tool setting



spindle load monitor



Airblow system



Airblow system internal to cutting tool



Spindle 1 Chuck

Kitagawa 250 (B 210) mm

Spindle 2 Chuck

Kitagawa 250 (B 210) mm

Interface for coolant through the spindle

70  bar

Tailstock specification for spindle 2



Measuring probe for work piece

Renishaw OMP60

pendant hand wheel



Parts and total counter



Signal lamp 3 colors

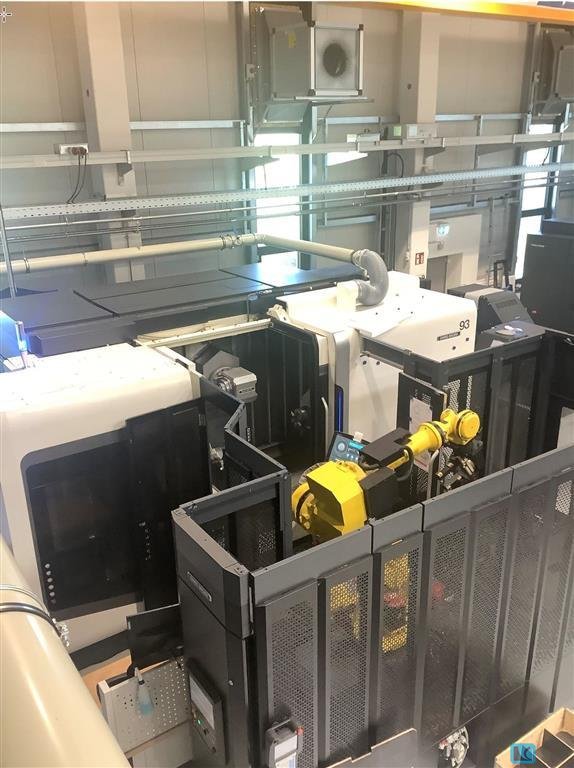

Robot interface

Matris Robot System R-2000iC/165F

Automatic door



Rotoclear window



Quick fixed cycles



Program restart



Signal lamp 4 colours



Ethernet I/P Interface



manual tool eye



Automatic door



Air Filter



Oil skimmer



Tactile sensor for workpiece measuring



Airblow system external

Subspindel

Spindle 1 coolant jet



Spindle 2 coolant jet



Coolant Gun



Coolant through spindle 70 bar with filter

Knoll
