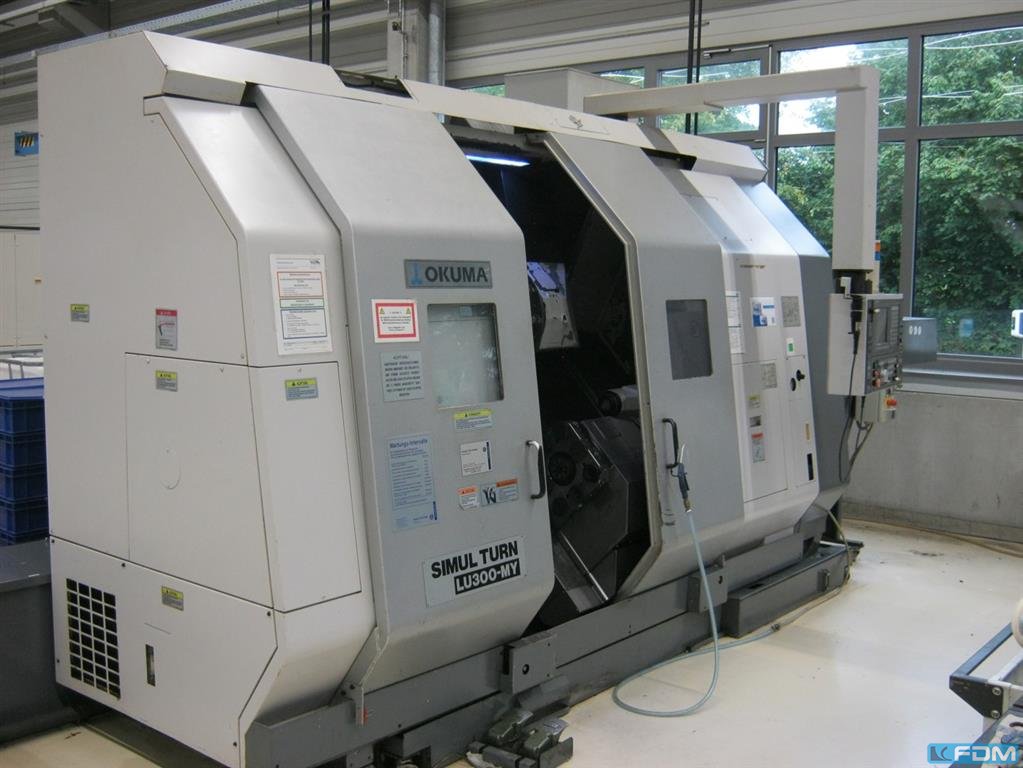

Details

max. turning diameter

320 mm

turning length

1040 mm

control

OSP E 100 L Dialog Fanuc

greates pass round over bed

530 mm

standard turning dia.

370

Max. distance between centres

1000 mm

max. workpiecediameter

530 mm

Traverse X-Axis 1

240

Traverse X-Axis 2

140 mm

Traverse Y-Axis 1

120 (+70/-50) mm

Traverse Z-Axis 1

1040 mm

Traverse Z-Axis 2

1015 mm

Spindle 1 Power

22 kW

Spindle 1 RPM

5000 1/min

spindle nose

JIS A2-8

spindle bore

61 mm

bar material dia.

52 mm

C-Axis

0,001°

Number of Turrets

2

Turret No.1 stations / rotary tools

12/12 VDI 40

Turret 1 tool RPM

4500 1/min

power capacity - driven tools

7 kW

Turret No.2 stations / rotary tools

8/0 VDI 40

rapid traverse X-axis

20 m/min

rapid traverse Y-axis

 m/min

rapid traverse Z-axis

25 m/min

total power requirement

33 kVA

weight of the machine ca.

10 t

dimensions of the machine ca.

5,0 x 2,3 x 2,81 m

Control unit

CNC

Maker of control unit

OSP E 100 L Dialog

54161 / 16754 am 09.12.2024

Accerories

Chip conveyor

Mayfran

part counter



total counter



tool setting



Signal lamp 3 colors



spindle load monitor

B

Spindle 1 Chuck

Kitagawa B 208 (210 mm)

High Pressure coolant 15 bar
