Bed Type Milling Machine - Universal SORALUCE TR 35 - S+B Maschinenhandels GmbH

Details

x-travel:: 3500 mm
y-travel:: 1300 mm
z-travel:: 1600 mm
table-size:: 3860 x 1200 mm mm
turning speeds:: 4.000 1/min
max. torque on the spindle:: 900 Nm
tool change unit:: 40
taper ISO:: 50
rapid traverse:: 35 m/min
milling spindle drive:: 43 kW
control:: TNC 640 HEIDENHAIN
weight of the machine ca.:: 24 t

Description

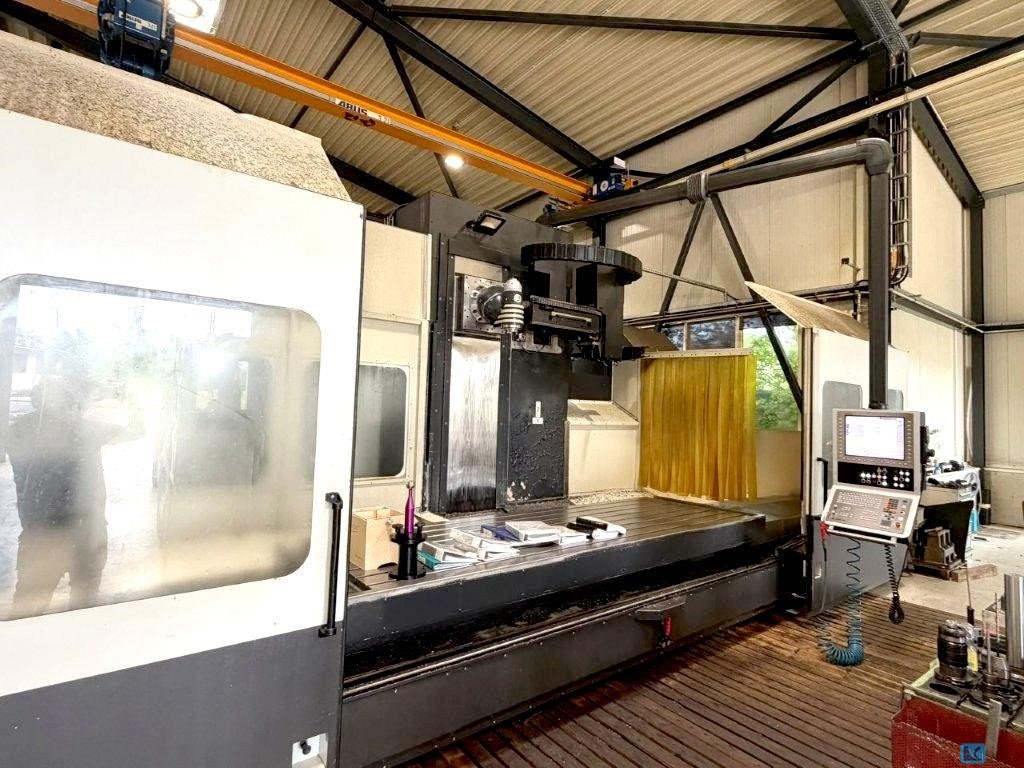

Universal- CNC-bed-milling machine with toolchanger,

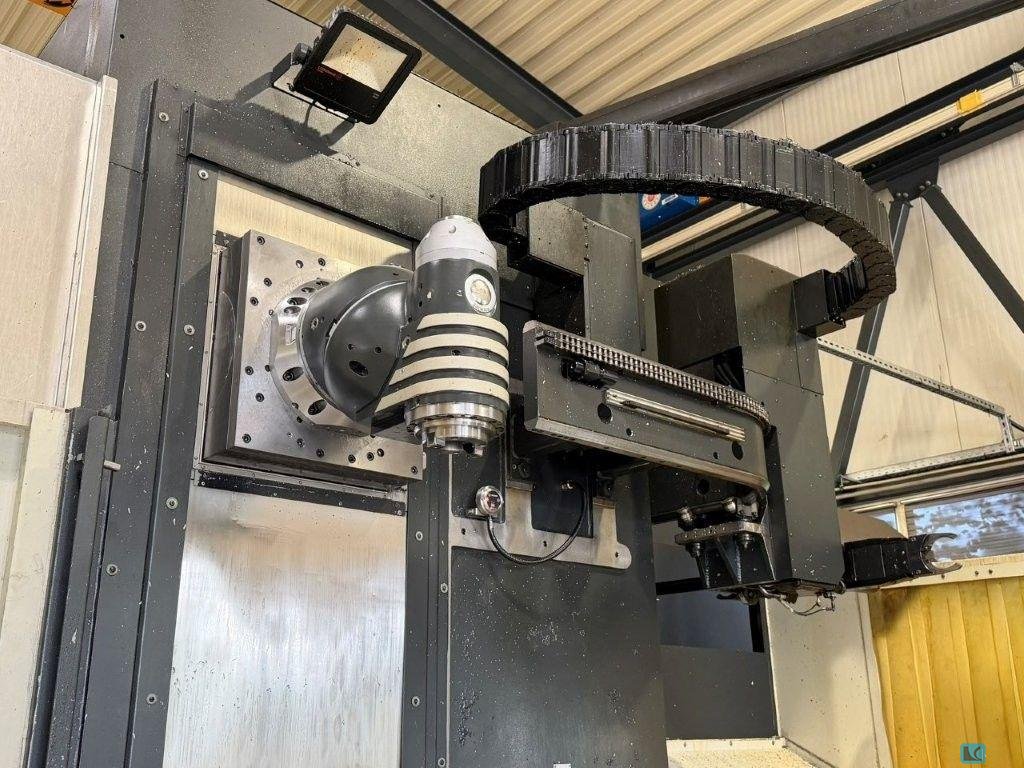

• H200 universal milling head 2,5° x 2,5 °
• 40-ATC
• 5-axis-interpolation
• DCM collission control
• Interpolation turning
• M&H 3D-touchprobe
• ICS 20 bar
• paper filter + magnetic separator
• cabin
• 3 chipconveyor
accessories: toolholder (approx. 40 pcs.)

approx. 12.000 h "machine on", approx 5.000h "spindle on",
still under power in closed factory
